Moog DS2020伺服驅動器
發布于：2025-12-30 11:04:08
品牌名稱：Moog
重要參數：
連續電流：2–24 Arms
峰值電流：4–48 Arms
輸入電壓：120–480VAC ±10%
最大輸出功率：24kW
尺寸(最小型號)：50mm(寬)× 215mm(高)× 199.4mm(深)
冷卻方式強制：風冷(內置風扇)
| AC supply voltage ratings from 120 VAC to 480 VAC +/- 10%,standard motor break interface |

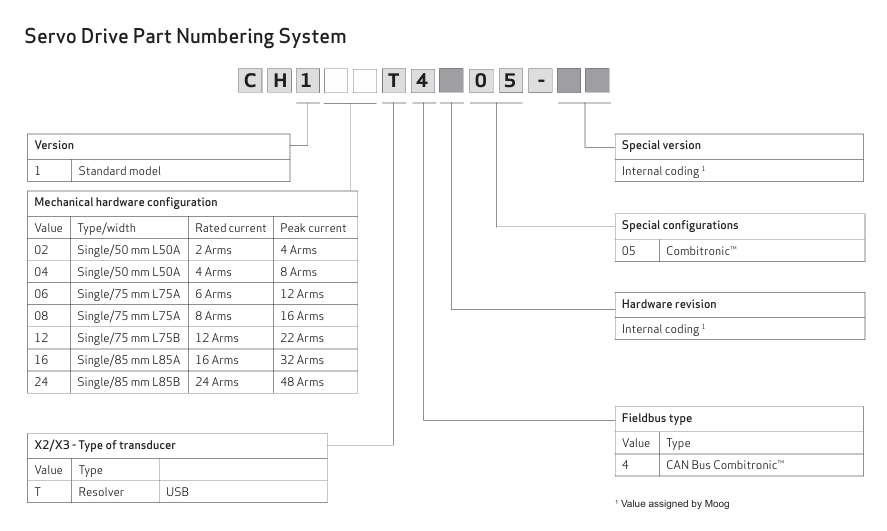

| Drive Model | Nominal Current | Peak Current | Code | Description |
| DS2020 02/04 | 2 Arms | 4 Arms | CH1 02 T 4 A 05-00 | Resolver,USB,CAN Bus Combitronic,50 mm |
| DS2020 04/08 | 4 Arms | 8 Arms | CH1 04 T 4 A 05-00 | Resolver,USB,CAN Bus Combitronic,50 mm |
| DS2020 06/12 | 6 Arms | 12 Arms | CH1 06 T 4 A 05-00 | Resolver,USB,CAN Bus Combitronic,75 mm |
| DS2020 08/16 | 8 Arms | 16 Arms | CH1 08 T 4 A 05-00 | Resolver,USB,CAN Bus Combitronic,75 mm |
| DS2020 12/22 | 12 Arms | 22 Arms | CH1 12 T 4 A 05-00 | Resolver,USB,CAN Bus Combitronic,75 mm |
| Connector kit:KITDS2020-R1 |
| Drive Model | Nominal Current | Peak Current | Code | Description |
| DS2020 16/32 | 16 Arms | 32 Arms | CH1 16 T 4 A 05-00 | Resolver,USB,CAN Bus Combitronic,85 mm |
| DS2020 24/48 | 24 Arms | 48 Arms | CH1 24 T 4 A 05-00 | Resolver,USB,CAN Bus Combitronic,85 mm |
| Connector kit:KITDS2020-R2 |
